SKU: S32

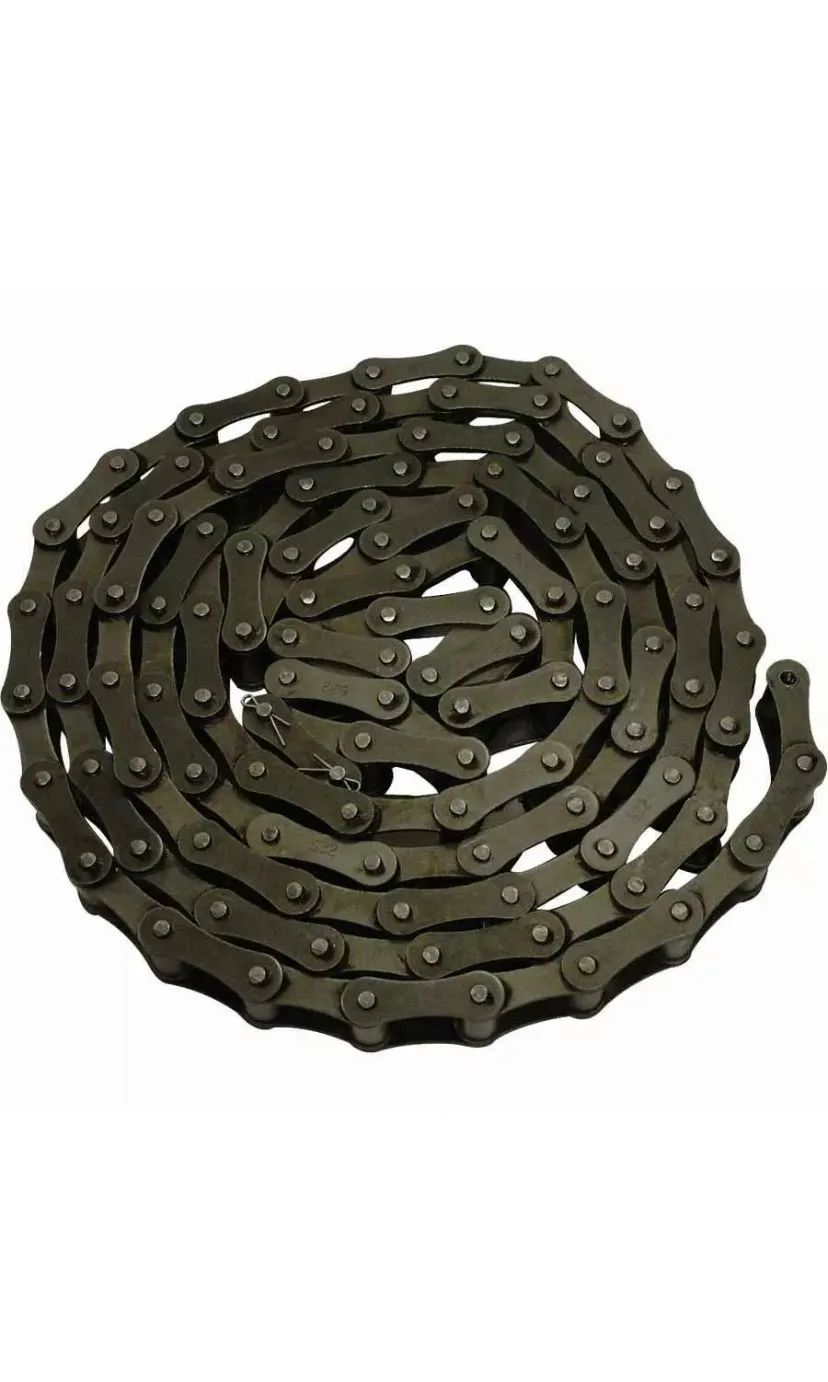

S32 chain is manufactured to DIN8189 standards and is primary used in agricultural equipment. This S32 roller chain features solid rollers, heat treated components.

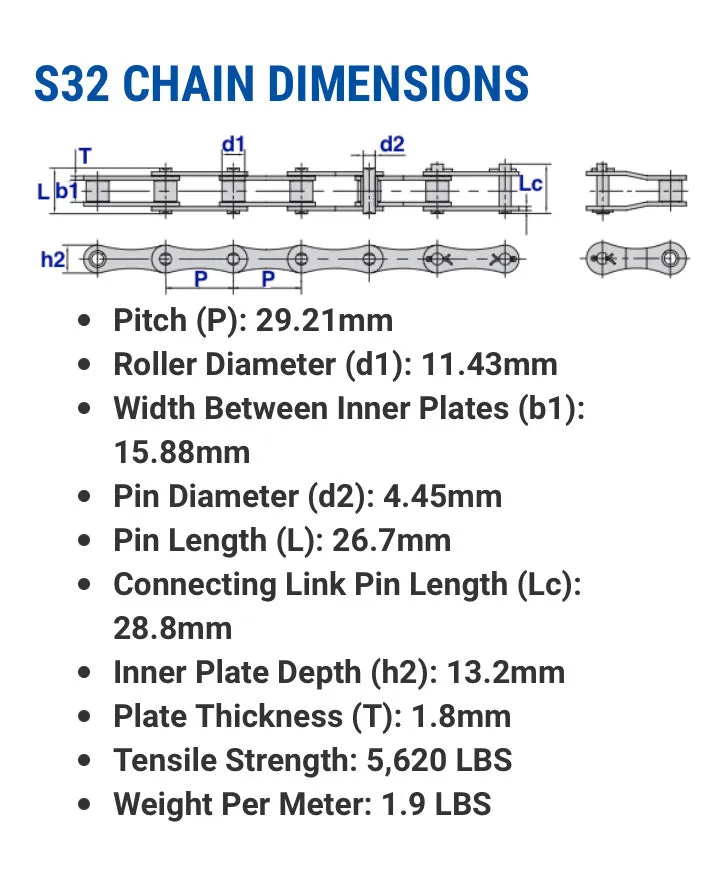

• Pitch (P): 29.21mm
• 10’ Coil
• Roller Diameter (d1): 11.43mm
• Width Between Inner Plates (b1): 15.88mm
• Pin Diameter (d2): 4.45mm
• Pin Length (L): 26.7mm
• Connecting Link Pin Length (Lc): 28.8mm
• Inner Plate Depth (h2): 13.2mm
• Plate Thickness (T): 1.8mm
• Tensile Strength: 5,620 LBS
• Weight Per Meter: 1.9 LBS
